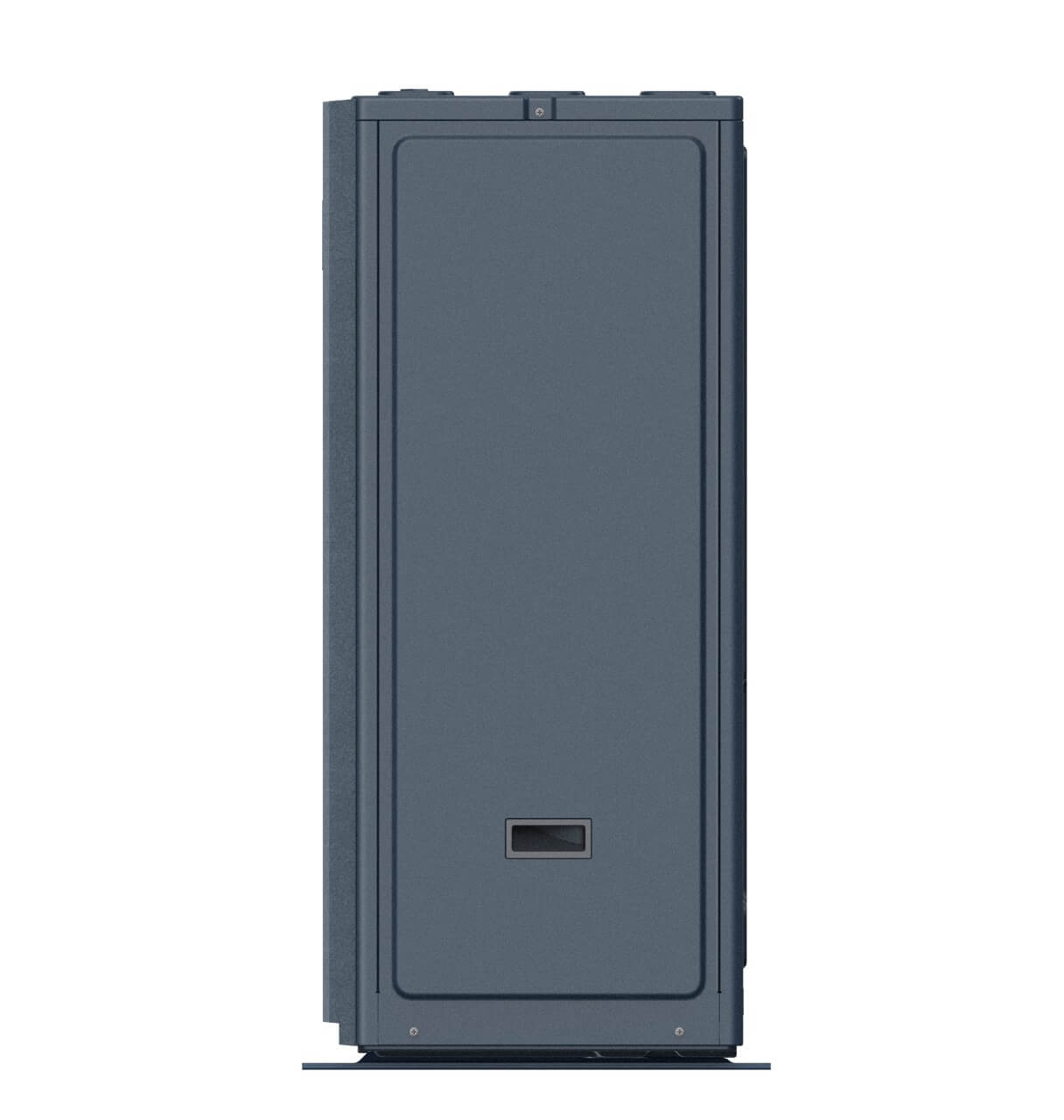

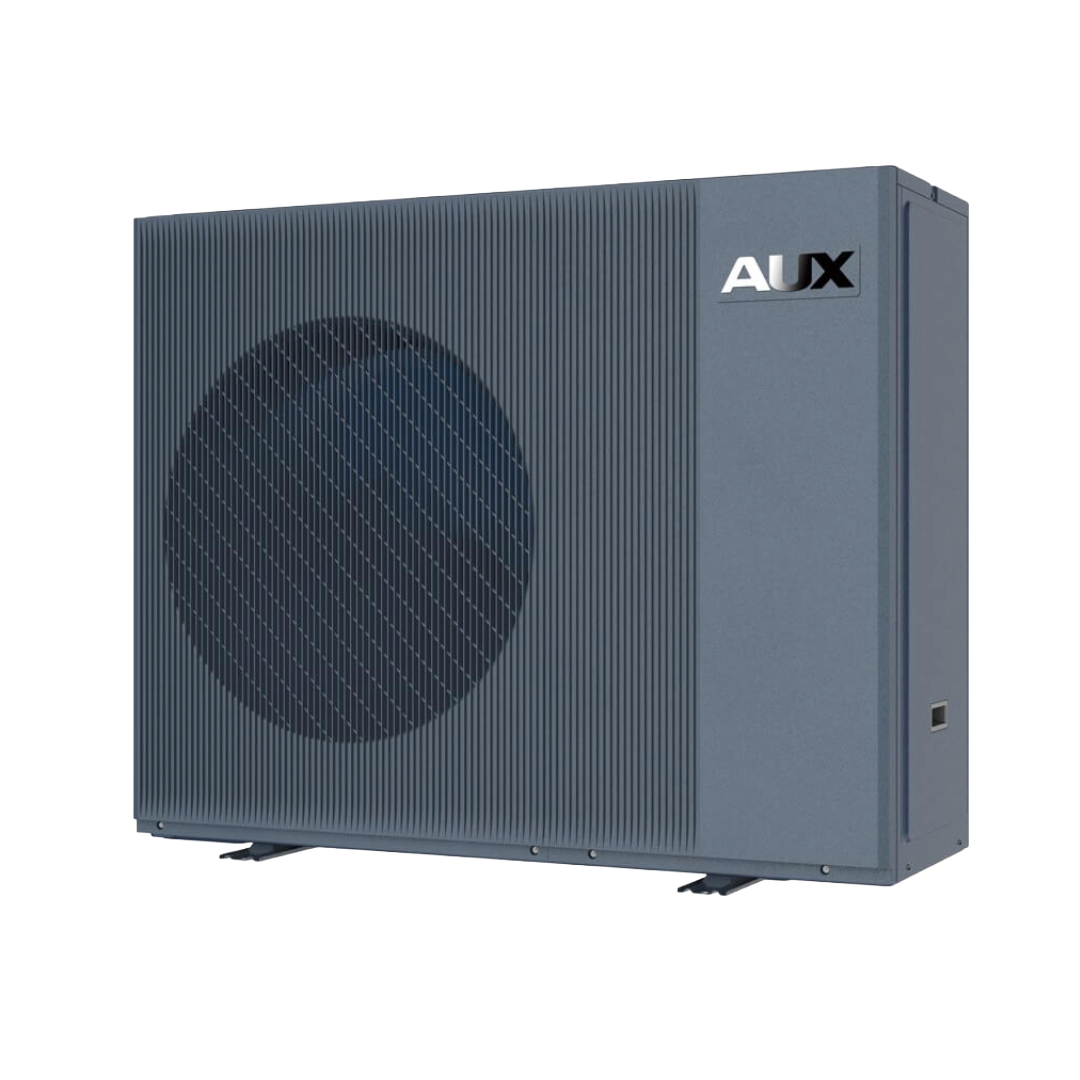

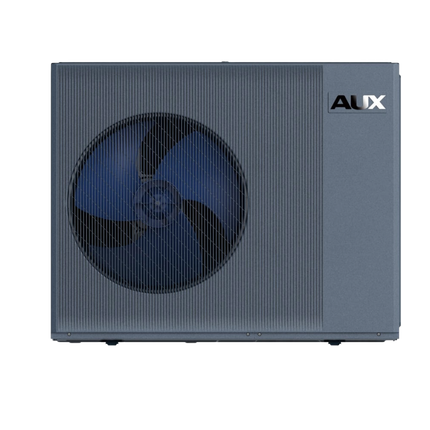

AUX R290 High Temp ASHP 10kW

Name: AUX R290 High Temp ASHP 10kW
Brand: AUX
SKU: A1013
Price: 4389.47 GBP
Availability: InStock

Product form

The AUX R290 Monoblock Heat Pump is a next-generation heating system designed to provide efficient, quiet, and sustainable home comfort... Read more

Free pickup in our shop(s) Free pickup in our shop(s)

SKU: A1013

£4,389.47 Incl. VAT

Call us: +44 345 257 7387

Available on working days between 9:00 am to 6:00 pm

Email us: info@auxuk.com

Available on working days between 8:00 am to 5:00 pm

A+++ Rating: Rated for maximum efficiency at both 35 °C and 55 °C flow temperatures.
High SCOP: MCS listed with the highest SCOP scores in its class.
Built-in Backup: Integrated 3kW heater ensures reliability during extreme peaks.

Full Output: Maintains 100% capacity even at -7 °C outdoor temperatures.
Fit & Notify: 4, 6, 8, and 10kW units qualify for easy DNO notification.
Compact Safety: Minimal 300mm safety clearance required for flexible placement.

Capacity	Model	Backup Heater	Power	SCOP (35°C)	SCOP (55°C)
4kW	ACHP-H04/4R2HA-M	3kW	220V-240V1N~50Hz	A+++	A+++
6kW	ACHP-H06/4R2HA-M	3kW	220V-240V1N~50Hz	A+++	A+++
8kW	ACHP-H08/4R2HA-M	3kW	220V-240V1N~50Hz	A+++	A+++
8kW (NE)	ACHP-H08/4R2HA-M(NE)	No Heater	220V-240V1N~50Hz	A+++	A+++
10kW	ACHP-H10/4R2HA-M	3kW	220V-240V1N~50Hz	A+++	A+++
10kW (NE)	ACHP-H10/4R2HA-M(NE)	No Heater	220V-240V1N~50Hz	A+++	A+++
12kW	ACHP-H12/4R2HA-M	3kW	220V-240V1N~50Hz	A+++	A+++
14kW	ACHP-H14/4R2HA-M	3kW	220V-240V1N~50Hz	A+++	A+++
16kW	ACHP-H16/4R2HA-M	3kW	220V-240V1N~50Hz	A+++	A+++

R290 Series: Seasonal Heating Performance & Efficiency Matrix

Temperature	Measurement	H04/4R2HA	H06/4R2HA	H08/4R2HA	H10/4R2HA	H12/4R2HA	H14/4R2HA	H16/4R2HA
Heating A7W35	Capacity (W)	4568	6290	8400	10000	14930	16170	17820
	Rated input (W)	880	1270	1680	2080	3330	3740	4250
	COP	5.20	4.95	5.00	4.80	4.49	4.32	4.19
Heating A7W45	Capacity (W)	4568	6496	8420	10270	14820	16000	17510
	Rated input (W)	1120	1693	2160	2780	3400	3820	4310
	COP	4.09	3.84	3.89	3.69	4.36	4.19	4.06
Heating A7W55	Capacity (W)	4669	6293	7800	9500	14680	15800	17230
	Rated input (W)	1440	2010	2360	2920	3420	3860	4380
	COP	3.23	3.13	3.30	3.25	4.29	4.10	3.93

Mode	ACHP-H04/4R2HA-M	ACHP-H06/4R2HA-M	ACHP-H08/4R2HA-M	ACHP-H10/4R2HA-M	ACHP-H12/4R2HA-M	ACHP-H14/4R2HA-M	ACHP-H16/4R2HA-M
Heating A7W35	48	49	48	49	46	47	47
Heating Max	50	51	50	51	48	49	50
Heating Silence I	45	46	45	46	44	45	45
Heating Silence II	42	43	42	43	43	43	43

Download all available details related to this specific product
