Description

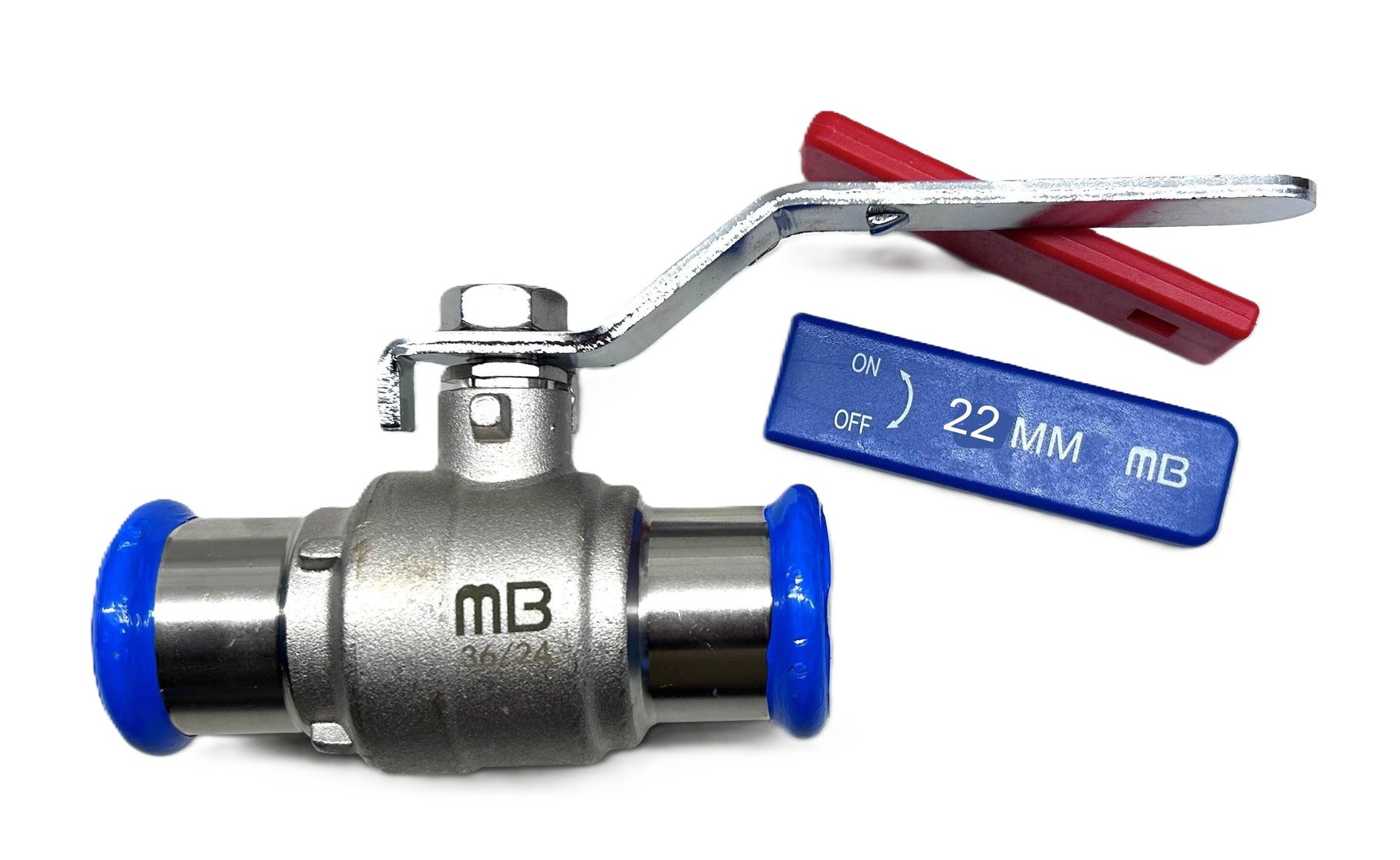

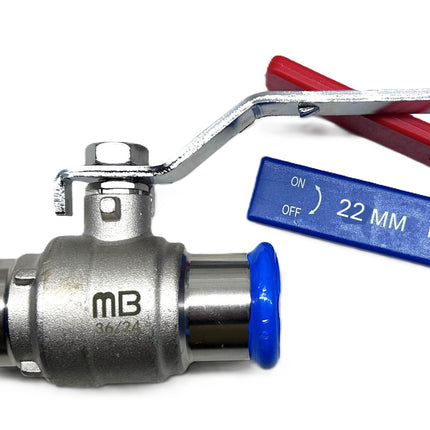

MB PRESSFIT LEVER BALL VALVE from NAVIGATOR
The Midbrass PRESSFIT range offers a high-performance, flame-free solution for water and heating systems.
With WRAS-approved fittings, durable brass construction, and compatibility with major press tools, it’s designed for reliability, ease of installation, and long-term peace of mind.
PRODUCT FEATURES:
- M-Profile Press with friendly leak detection feature, detects any joint that is not pressed.
- Reliable design compatible with major press tools.
- Heavyweight solid pattern made from nickel plated DZR brass material .
- Integral plastic ring which identifies of the part has been pressed.
- Patented dual sleeve design means only one version needs to be stocked.
- Manufactured to EN1254-7 standard.
- Working pressure 16 BAR.
- Fully WRAS approved product.
- 7-year guarantee.
PRODUCT SPECIFICATIONS:
- Material: Nickel-Plated DZR Brass
- Size: 22mm
- Manufacturing Standard: EN 1254-7
- Dimension Tolerance: refer to ISO2768-MK
- Certification: WRAS approved
- Marks: MB, PN, size, E, batch number
TECHNICAL DATA:
- Field of Application: Water
- Max. Working Pressure: 16 BAR
- Max. Working Temperature: 99° C
- Standard: EN 1254-7
- Certification: WRAS Approved
Specifications
| Item Description |
22MM MB PRESSFIT WATER LEVER BALL VALVE WITH DUAL HANDLE DZR NICKEL PLATED
|
| Material |
DZR BRASS
|
| Brand |
MB |
| Size |
22MM |
| Barcode |
5037877033393 |
